Introduction

Launched in 2014, USB Armory is a small and portable USB-sized personal computer created by Andrea Barisani [1]. Originally intended to be produced as a secure data store, USB Armory became a versatile device used as a full-scale computer for developing, running different applications, storing information safely, and testing security. With its hardware sufficient as a computer, it can be configured on an installed Linux system that boots and thus powers up when plugged into any computer, for example, so that data not only ends up on an encrypted partition but is automatically re-encrypted when transferred. USB Armory uses many security features that are responsible for encrypting and decrypting data, using different hashing functions and unique keys. With the USB Armory, software, and hardware will be secured. [2] .

OPEN SOURCE FLASH-DRIVE SIZED COMPUTER [3]

There are currently two versions of USB Armory:

  • USB Armory MK I.
  • USB Armory MK II.

USB Armory MK II was developed after some design and security issues in the USB Armory MK I were detected. The Mk II model introduces significant improvements, including more processing power, enhanced security with additional secure elements, expanded storage options, Bluetooth connectivity, and support for debugging accessories.

USB Armory MK I Hardware

  • NXP i.MX53 ARM® Cortex™-A8 800MHz, 512MB DDR3 RAM
  • USB host powered (<500 mA) device with compact form factor (65 x 19 x 6 mm)
  • ARM® TrustZone®, secure boot + storage + RAM
  • microSD card slot
  • 5-pin breakout header with GPIOs and UART
  • customizable LED, including secure mode detection
  • excellent native support (Android, Debian, Ubuntu, Arch Linux)
  • USB device emulation (CDC Ethernet, mass storage, HID, etc.)
  • Open Hardware & Software [4]

USB Armory MK II Hardware

  • NXP i.MX6UL/i.MX6ULZ ARM® Cortex™-A7 900MHz, 512MB/1GB DDR3 RAM
  • USB host powered (<500 mA) device with compact form factor (65 x 19 x 6 mm)
  • ARM® TrustZone®, secure boot + storage + RAM
  • Secure elements Microchip ATECC608A and NXP A71CH
  • Internal 16GB eMMC + external microSD
  • U-blox ANNA-B112 Bluetooth module
  • Bebug accessory support for UART, GPIO, SPI, I²C, CAN breakout
  • Customizable LEDs, including secure mode detection
  • Supported by vanilla Linux kernels and distros
  • USB device emulation (CDC Ethernet, mass storage, HID, etc.)
  • Open Hardware & Software [5]

Software

  • Native Linux support – creating boot images is easy
  • Precompiled images are available for Debian 9 (Stretch) and Arch Linux, with more on the way
  • USB device emulation (CDC Ethernet, mass storage, HID, etc.) [6]

How to connect

  • USB Connectivit: HS USB 2.0 On-The-Go (OTG) with device emulation
  • Communication: TCP/IP communication via CDC Ethernet emulation
  • Flash drive functionality: Mass storage device emulation
  • Serial communication: over USB or physical UART
  • Stand-alone mode: with dedicated host adapter [7]

Background

The USB Armory project was initiated by Inverse Path, a renowned security consultancy acquired by F-Secure in 2007. Currently, Inverse Path is part of WithSecure Corporation [8]. The USB Armory, born as the company's first hardware project, was crowdfunded [9] and operates under the CERN Open Hardware License [10]. The motivation behind its development was the team's quest to create a pocket-sized, open-source encryption device, filling a gap in the market where transparency and security were lacking.

Initial Design Goals

  • Compact USB Powered Device
  • Fast CPU and generous RAM
  • Secure Boot
  • Standard Connectivity over USB
  • Familiar Developing and Executing Environment
  • Open Design

Scopes Of Application

  • Hardware Security Module (HSM)
  • File storage with advanced features such as automatic encryption, virus scanning, host authentication, and data self-destruct using Interlock.
  • OpenSSH client and agent for untrusted hosts (kiosk).
  • Router for end-to-end VPN tunneling, Tor.
  • Password manager with an integrated web server using Armory Pass.
  • Electronic wallet (e.g. pocket Bitcoin wallet) using Electrum Bitcoin wallet.
  • Authentication token.
  • Portable penetration testing platform.
  • USB Firewall.
  • Low level USB security testing [11].


Application Projects and Implementation

Some available software projects and Proof of Concepts (PoCs) are:

  • GoKey: It can function as a smart card, offering compatibility with the OpenPGP protocol for encryption and decryption, and the FIDO U2F authentication standard, through the open-source software GoKey [12].

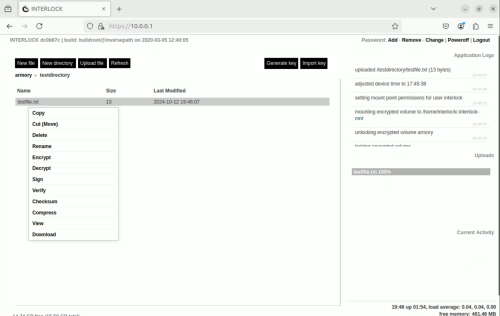

  • Interlock and Armory-Drive: The USB Armory’s wiki offers two dedicated software solutions for file encryption. The Interlock [13] application serves as a user-friendly front-end for encrypting files, facilitating the process for secure data protection. In addition, the armory-drive [14] unikernel enables encrypted USB Mass Storage interfacing for microSD cards, ensuring data security during storage and transfer [15].
  • Electrum Bitcoin Wallet: the device is compatible with the Electrum Bitcoin Wallet [16], which can be used out of the box to turn a USB Armory into a Bitcoin wallet.
  • Armory Pass: it can also be used as a password manager using MichaelWeissbacher’s Armory Pass [17]. The USB Armory in combination with the tool Armory Pass, turns into a portable password manager that does not require manually copying any password.

Getting Started

Boot Mechanisms

For USB Armory to work in a certain operating system, either the microSD card is inserted. [18]:

USB Armory has a valid Pre-Image file for each operating system on its own page. Optionally, booting can be done either manually or by downloading the appropriate file and flashing the microSD card (before it is inserted into the USB Armory) with balenaEtcher software.

Pre-image

You can find the following Pre-Image files at this link: https://github.com/f-secure-foundry/usbarmory/wiki/Available-images

Available images [19]

Flash the microSD

You can download the following software here: https://www.balena.io/etcher/ After downloading Balena, insert the MicroSD in the computer and flash the downloaded pre-image.

Flash OS images to SD cards & USB drives, safely and easily [20]

Insert the microSD

After flashing the microSD insert the microSD into USB Armory and after plugging it in, the USB Armory will start to blink twice every second.

Host communication

Since the booted microSD card is ready in the operating system, Host communication can be started [21]. On Linux devices or VM with Linux:

# look up the name of the USB virtual Ethernet interface which was created by the USB Armory
ifconfig
# bring the USB virtual Ethernet interface up
/sbin/ip link set usb0 up
# set the host IP address
/sbin/ip addr add 10.0.0.2/24 dev usb0
# enable masquerading for outgoing connections towards wireless interface
/sbin/iptables -t nat -A POSTROUTING -s 10.0.0.1/32 -o wlan0 -j MASQUERADE
# enable IP forwarding
sudo sysctl -w net.ipv4.ip_forward=1
#connect to USB Armory via ssh - password: USB armory
ssh usbarmory@10.0.0.1

Armory Pass

Armory Pass is a password manager for USB Armory, that function as a web-based password manager. It works by simulating a button click on the website and after "clicking the button" the password will be written in the password field.[22].

Note: Python2 is no longer supported and maintained. [23] Python3 does not work with Armory Pass.


To configure it:

On The USB Armory:

1. Clone Armory Pass from:https://github.com/mweissbacher/armory-pass

2. Download Python2 since Armory Pass works only with Python2*:

  .) sudo apt install python2

3. Install PIP:

  .) curl https://bootstrap.pypa.io/pip/2.7/get-pip.py --output get-
     pip.py
  .) sudo python2 get-pip.py

4. Install Cherrypy:

  .) pip install cherrypy

5. Install Websocket: Ws4py

  .) git clone git@github.com:Lawouach/WebSocket-for-Python.git
  .) python2 setup.py install
  .) pip install ws4py
  .) easy_install ws4py

6. Edit the file "Background.js" by changing the IP address to 127.0.0.1.

7. Change the Permissions for the files "Background.js" and "manifest.js".

8. Add the websites and your Passwords to "Password_store.js".

9. Run "ws.py" and "secret.js" file will be created.

  .) python2 ws.py

Locally

1. Clone Armory Pass from:https://github.com/mweissbacher/armory-pass

2. Download Google Chrome since Armory pass works only with chrome extension:

  .) wget https://dl.google.com/linux/direct/google-chrome-stable_current_amd64.deb
  .) sudo apt install ./google-chrome-stable_current_amd64.deb
  .) sudo apt install google-chrome-stable

3. Create "secret.js" and copy the contents from the "secret.js" on the USB Armory and paste it into the locale "secret.js".

4. Edit the permissions locally as on the USB Armory.

5. Edit "Background.js" and add the IP address 10.0.0.1

6. Add Armory Pass Extension to Chrome and open the page you want to write your password on. 7. Simulate clicking the button:

  .) python2 test_press.py

Alternatives

  • Ledger: develops hardware to secure crypto assets by ensuring the end user’s private keys are safe from theft.
  • TREZOR: is an open-source bitcoin wallet.
  • Nitrokey: This USB device offers an open source and open hardware design that is developed for email encryption, storing encrypted data, encrypting hard disk and files, managing keys and certificates, and server administration with SSH.
  • Wookey: This project is fully open source and open hardware is working on prototyping a secure and trusted USB storage device with data encryption and secure firmware update with secure boot[24].

MK II: Debug Accessory Board

The Debug Accessory Board [25], is an optional accessory for the newest version, the MK II. Like the USB Armory, the board is licensed under CERN Open Hardware License.

The Mk II has a USB Type-C port that supports the USB-C debug accessory mode. This mode allows the use of the port for analog/debug signals. With this feature, the USB Armory Mk II breaks out connections for UART, SPI, I²C, CAN (pre-transceiver), and GPIOs to/from its processor.

The debug accessory board makes it easy to access UART and GPIO signals via USB, without needing probes. It uses an FTDI FT4232H, allowing direct access to the USB Armory Mk II serial console using only USB cables, with no need for extra wires or probes. Other interfaces are accessible through dedicated holes.

Mark II Debug Accessory Board [26]

The board is 22x57x12 mm, including the USB-C connector.

Hardware Used

USB armory + Enclosure
